Auto steel strip air-feeder
Model	AF-2C	AF-3C	AF-4C	AF-5C	AF-6C	AF-7C	AF-8C	AF-9C	AF-10C
Width Max (mm)	76	80	100	150	200	250	300	350	400
Length Max (mm)	70	80	125	150	200	250	300	350	400
Thickness (mm)	0.8	1.2	1.5	2.0	2.0	2.5	2.5	3.0	3.0
Air pressure (Kg/cm2)	4.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5
Speed Max (c/min)	160	150	90	75	55	40	35	30	30

	Specification

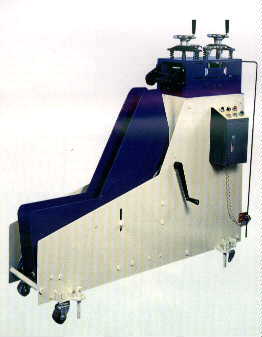

	Coils Feeder & Leveller
	Model	CL-150	CL-200	CL-300
	Width Max (mm)	150	200	300
	Thickness (mm)	3.0	3.0	3.0
	Coil Weight (Kg)	500	700	800
	Coil O.D.(mm)	400-900
	Motor (Hp)	1	1	2
